• 3 Way Mounting Pad Reduced Port Ball Valve Screwed End

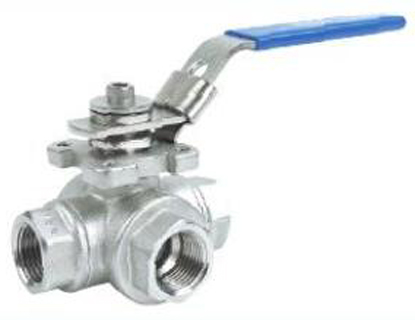

3 Way Mounting Pad Reduced Port Ball Valve Screwed End

  • 3 Way Mounting Pad Reduced Port Ball Valve Screwed End
  • EMAIL   INQUIRY


Valves & Fittings
1.    Wafer & Lug type Butterfly Valve
²  Size: DN50(2") to DN1200(48")
²  Materials:
Body: gray iron, ductile iron
Disc: ductile iron w/nickel coating, aluminum, bronze, stainless steel
Stem: stainless steel
Bushing: lubricated bronze/PTFE
Seat: EPDM/Buna-N/Neoprene/Viton/PTFE
Hand lever for 2"-8"; Worm gear actuator for 8" up
2.   3PC/2PC Trunnion Mounted Ball Valve,
²  Size: 2" ~ 40" 3PC Forged Steel Body Class: 150 ~ 2500
²  Size: 2” ~ 24” 2PC Cast Steel Body Class: 150 ~ 600
²  Trunnion Mounted Ball, Full & Reduced Bore
²  Anti-Static Device
²  Blow-out Proof Stem
²  Fire Safe Design
²  Emergency Sealant Injection (6" & Larger)
²  ISO5211 Top Flange

3.   Small Sizes Forged Floating Ball Valve
²  Size: 1/2” ~ 2” Class: 800 ~ 1500
²  Forged Steel, Brass
²  Floating Ball
²  Anti-Static Device
²  Blow-out Proof Stem
²  Socket Weld End or Screwed End
4.   Cast Steel Gate Valve
²  Size: 2” ~ 48” Class: 150 ~ 2500
²  Rising Stem, Bolted Bonnet, Flexible Wedge
²  Locking Device (If Request)
²  Extended Bonnet for Cryogenic Service (If Request)

5.    Cast Pipe Fittings
